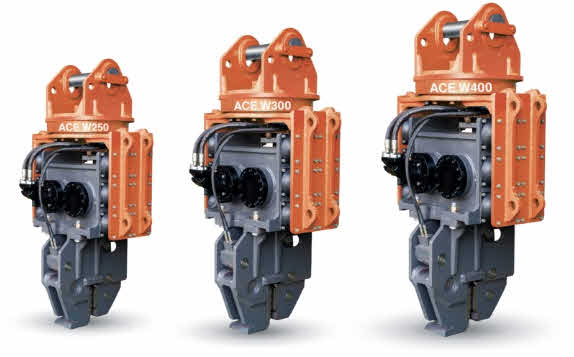

Vibro Hammer

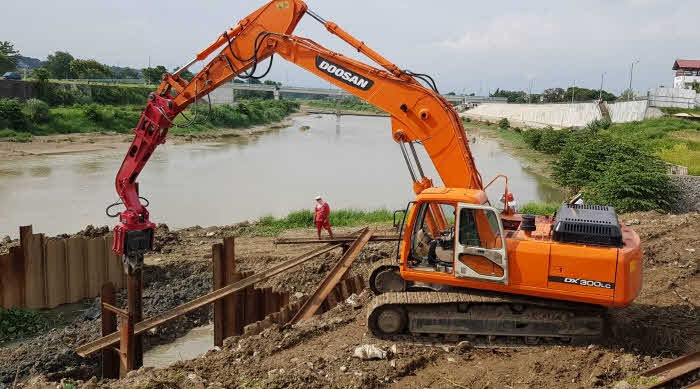

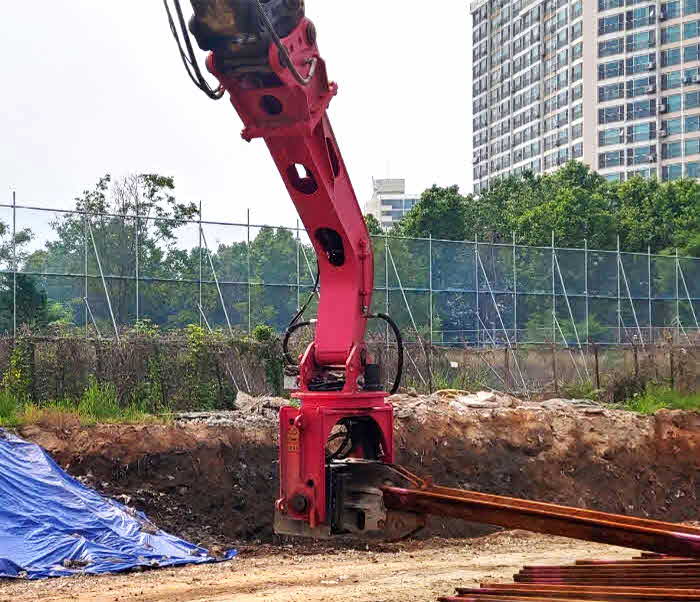

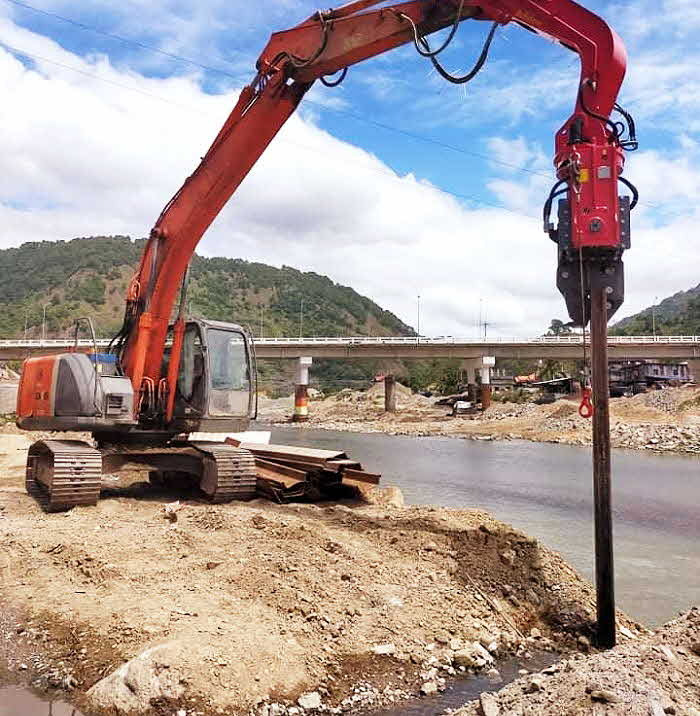

- Piling and pulling sheet pile, H-beam, steel plate and pipe etc
- Lower noise level than other vibration equipment
- High quality electrical harness
- Easy connection to excavator by using breaker hydraulic lines
- 360-degree rotation for easy operation
- 90-degree tilting of tilting type
Specification
Sheet Pile Length & Drive Depth
| Model | W250 / F250 | W300 / F300 | W400 / F400 |
|---|---|---|---|
| Standard | Approx.8m | Approx.10m | Approx.11m |
| Option | Can be customized(1 Month Max.) | ||
| Specification | Unit | W250 / F250 | W300 / F300 | W400 / F400 | |
|---|---|---|---|---|---|
| Carrier Weight | ton | 18~26 | 25~35 | 34~45 | |
| Frequency | bpm | 2800~3000 | 2500~2700 | 2000~2200 | |
| Eccentric Moment | Nm(lbs) | 66(584) | 80(708) | 100(885) | |
| Centrifugal Force | kN | 450 | 500 | 550 | |
| Amplitude | mm | 12 | 14 | 16 | |
| Setting Pressure | bar(psi) | 250(3625) | 250(3625) | 280(4061) | |
| Oil Flow | L/min | 170~200 | 210~230 | 250~260 | |
| Slewing / Tilting | degree | 360 / 90 | 360 / 90 | 360 / 90 | |

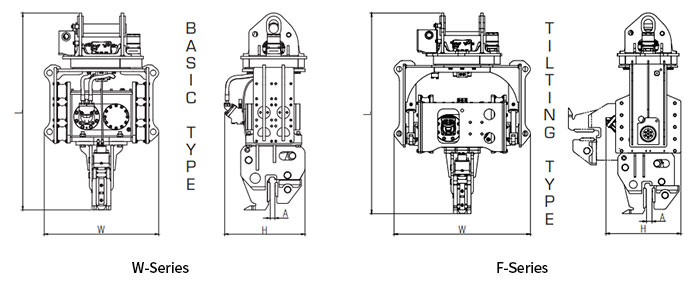

| A | mm | 57 | 57 | 57 | |
| Ext. Boom Weight | kg | 580 | 700 | 870 | |
| W-Series | Operating Weight | kg | 1550 | 1700 | 1800 |
| L x W x H | mm | 1838 x 1044 x 755 | 1903 x 1106 x 796 | 1923 x 1190 x 837 | |
| F-Series | Operating Weight | kg | 1740 | 1940 | 2120 |
| L x W x H | mm | 2057 x 1353 x 749 | 2182 x 1406 x 793 | 2192 x 1493 x 843 | |
