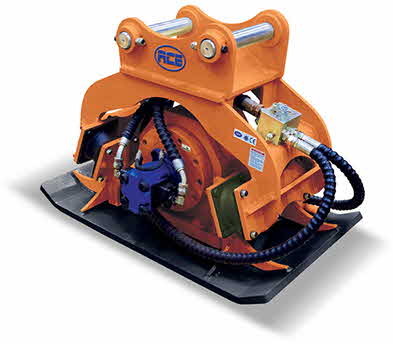

Compactor

  • Proper high-quality oil pressure motor to all types of models.
  • All-in-one block oil flow control valve.
  • Highly effective in hardening the narrow ditch.

Specification

Item
Model

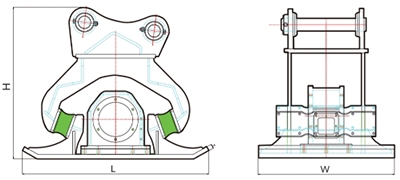

Impulse Force Hydraulic Flow Capacity Pressure Measurement Height
(H)
Width
(W)
ton rpm cc/rev kg/cm3 (L x W x T)mm mm mm
ACE C06 7 600~2,000 63 150~250 1,145 x 700 x 28 850 700
ACE C08 15 600~2,000 80 150~250 1,250 x 850 x 30 1,100 850
ACE C100 15 600~2,000 100 180~210 1,350 x 950 x 32 1,100 950
