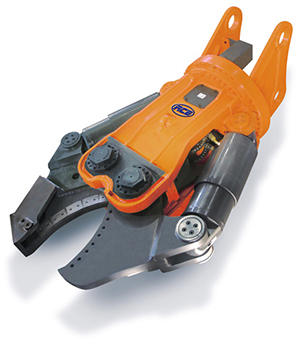

Shears
- Highly efficient iron scrap shears
- It has superior ability to cat iron, pipe, beam and etc.

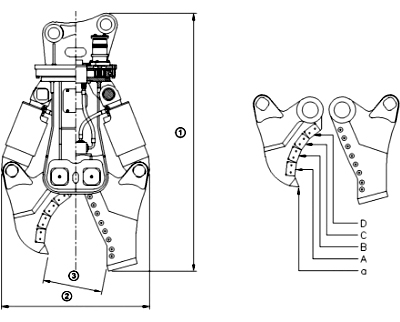

Specification
| Item / Model | Unit | ACE SD 800R | ACE SD 1000R |
|---|---|---|---|
| Applicable excavator | ton | 21~26 | 27~36 |
| Gross weight | kg | 1,900 | 2,750 |
| Total length | mm | 2,090 | 2,320 |
| Width | mm | 1,300 | 1,500 |
| Max. angular aperture | mm | 500 | 550 |
| Cutter length | mm | 350 | 580 |
| Cutting ability | ton | 190 | 360 |
| Applicable pressure | bar | 280 | 300 |
| Applicable flux | lpm | 200 | 250 |
