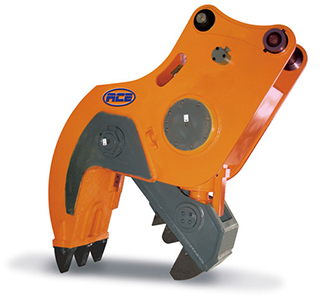

Pulverizer
- Strong crushing strength, excellent operation ability
- Mighty power equipped with full-sized cylinder

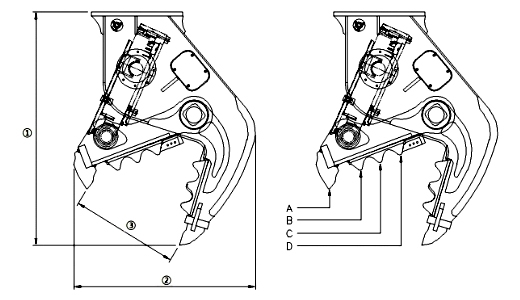

Specification
| Item / Model | Unit | ACE P08 | ACE P10 |
|---|---|---|---|
| Applicable excavator | ton | 21~26 | 27~36 |
| Gross weight | kg | 1,800 | 2,400 |
| Total length | mm | 2,100 | 2,400 |
| Width | mm | 500 | 570 |
| Max. angular aperture | mm | 800 | 900 |
| Cutter length | mm | 110 | 127 |
| Cutting ability | ton | 160 | 180 |
| Applicable pressure | kg/cm2 | 280 | 320 |
| Applicable flux | lpm | 130~220 | 250~300 |
